What is a Black Box in Aircraft? Meaning, Types, Function & Importance

Every time an aircraft crashes, a critical term surfaces in headlines — the “Black Box.” Despite its name, the black box is not black at all. It is a bright orange-colored device that plays a vital role in air crash investigations by recording crucial flight data and cockpit conversations.

The black box in an aircraft is considered the most crucial tool for investigators to determine what went wrong during a flight, especially in tragic accidents like the Air India Flight AI171 crash in June 2025.

What is a Black Box in an Aircraft?

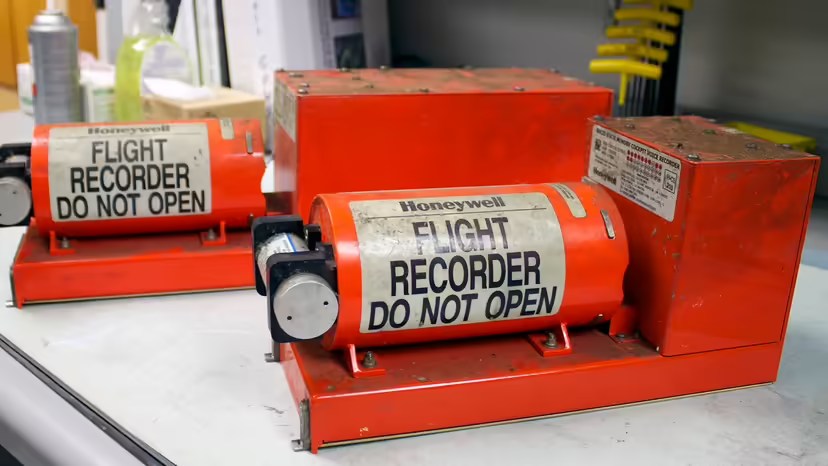

A Black Box is a common term used for the Flight Recorder installed in aircraft. It is not a single device but comprises two separate components:

1. Flight Data Recorder (FDR)

2. Cockpit Voice Recorder (CVR)

These devices continuously record flight parameters and cockpit audio, helping investigators recreate the final moments of a flight before an accident.

Why is it Called a “Black Box”?

The term “Black Box” was coined during the early days of aviation. Originally, flight recorders were enclosed in black metal boxes to prevent light from entering, especially in prototypes that used photographic film to record flight data.

Today, despite being painted bright orange for visibility in wreckage, the name “Black Box” has stuck in aviation terminology.

What Are the Types of Black Boxes?

1. Flight Data Recorder (FDR)

• Records over 80+ parameters like speed, altitude, engine performance, direction, roll, pitch, and more

• Stores data for the last 25 flight hours

• Helps in technical reconstruction of a crash scenario

2. Cockpit Voice Recorder (CVR)

• Records pilot conversations, radio calls with ATC, alarms, and other cockpit sounds

• Stores the last 2 hours of audio

• Useful to understand human errors, panic, or cockpit communication failure

How Does a Black Box Work?

• Begins recording when engines are turned on

• Continuously stores data in solid-state memory chips

• Fitted with an underwater locator beacon (ULB) that emits signals for up to 30 days if submerged

• Designed to withstand crashes, high temperature (up to 1100°C), and pressure (up to 20,000 feet underwater)

How is a Black Box Made Crash-Proof?

Black Boxes are built with:

• Titanium or stainless-steel casing

• Crash-Survivable Memory Unit (CSMU)

• Heat insulation and shock absorbers

• Withstand impact up to 3,400 G-force (equivalent to crashing at 310 mph)

How Does a Black Box Help in Air Crash Investigations?

After a plane crash, retrieving and analyzing black box data can:

• Reconstruct the exact sequence of events

• Identify technical or human errors

• Confirm if any mechanical failure occurred

• Provide clues about pilot decision-making during emergencies

• Understand if weather or external factors played a role

It typically takes 10 to 30 days to decode the data from a black box and prepare a preliminary report.

Examples of Black Box Use in Past Crashes

Is It Mandatory for Aircraft to Have a Black Box?

Yes. As per ICAO (International Civil Aviation Organization) and DGCA (India’s aviation regulator), all commercial aircraft must have operational black boxes installed. The minimum requirement includes:

• CVR for aircraft >5,700 kg

• FDR for aircraft carrying passengers or cargo on regular routes

Who Invented the Black Box?

The Black Box was invented by Australian scientist Dr. David Warren in the early 1950s. He proposed a device that could record cockpit conversations and instrument readings after investigating unexplained crashes of early jetliners. Australia became the first country to make black boxes mandatory in 1963.

Black Box and the “MAYDAY” Call

In recent crashes like Air India Flight AI171, the last signal received was a “MAYDAY” call. The black box may reveal:

• The exact words spoken

• Any alarms, smoke alerts, or instrument failures

• Whether the engine stalled or failed to respond

Key Facts about Aircraft Black Box

Conclusion

The black box is the silent investigator in every aviation disaster. It does not prevent accidents but helps the world learn from them, improve aircraft design, upgrade pilot training, and ensure passenger safety.

In a world where every second of a flight matters, the black box is the one device that tells the untold story of what happened in the sky.
